Azure DevOps Wiki Upgrade

The Ask

What I wanted 💖 for our development and engineering teams is:

• A wiki that embraces a modern approach to documentation, and for technical writing that is markdown-based, has a WYSIWYG and code editor (VS-Code?) and supports the latest extensions of Markdown.
• Mermaid rendering that works (!!).
• Callouts/ admonitions that are easy to use, and look good.
  • This should include collapsible sections, titles, and customisable icons!
• The Azure DevOps Wiki is based on a git repository (you can clone it to your machine), so using some repository rules we should be able to put a draft and approval workflow in place using a combination of pull requests and branch policies…but it’s too abstracted away at the moment.
• Incredible search capabilities, and the ability to interact with Microsoft Copilot for generative based chat.

This is almost like a mini-Confluence, but with a focus on technical writing against an engineering product that teams already use.

As much as GitHub is awesome (and I use it for my personal projects), Azure DevOps is the platform of choice for a lot of Enterprises the world over - including mine.

---

Some bits I’ve been playing with

What I’ve done so far, aside from the extension journey below, is:

• Create a .NET service that pulls from the Wiki (via the REST API), and pushes the content into Microsoft Copilot.
• This same service also runs the wiki content through a Markdown parser that does it’s best to convert (and fix some bad content) into a React format that can be rendered in an another site.
  • This supports some of the rendering I was after, and lazily loaded mermaid diagrams.
• Build an Astro site that uses its Markdown parser to render the content.
  • This was actually pretty successful - especially as you can integrate React/ Preact into it. It also meant it could be hosted outside of Azure DevOps, and removed the need to assign Azure DevOps Stakeholder licenses to all users (which was nothing more than a minor management overhead TBF))…democratising content FTW!

---

The Azure DevOps Extension Journey

I’ve been noodling on an Azure DevOps Extensions for a Wiki-UI for the past few days, and despite how baffling and disjointed the Azure DevOps extensions documentation can seem, I think I’ve got a good start on a workable solution…

All of this is because I wanted some basics..

Like being able use Mermaid in Azure DevOps wikis that actually renders correctly! 😁 (don’t ask)

Or the awesome alerts feature!

… like this:

---

2025-04-29 … current situation

I’ve imported some of my .NET Telemetry Source Generator wiki to help with testing…

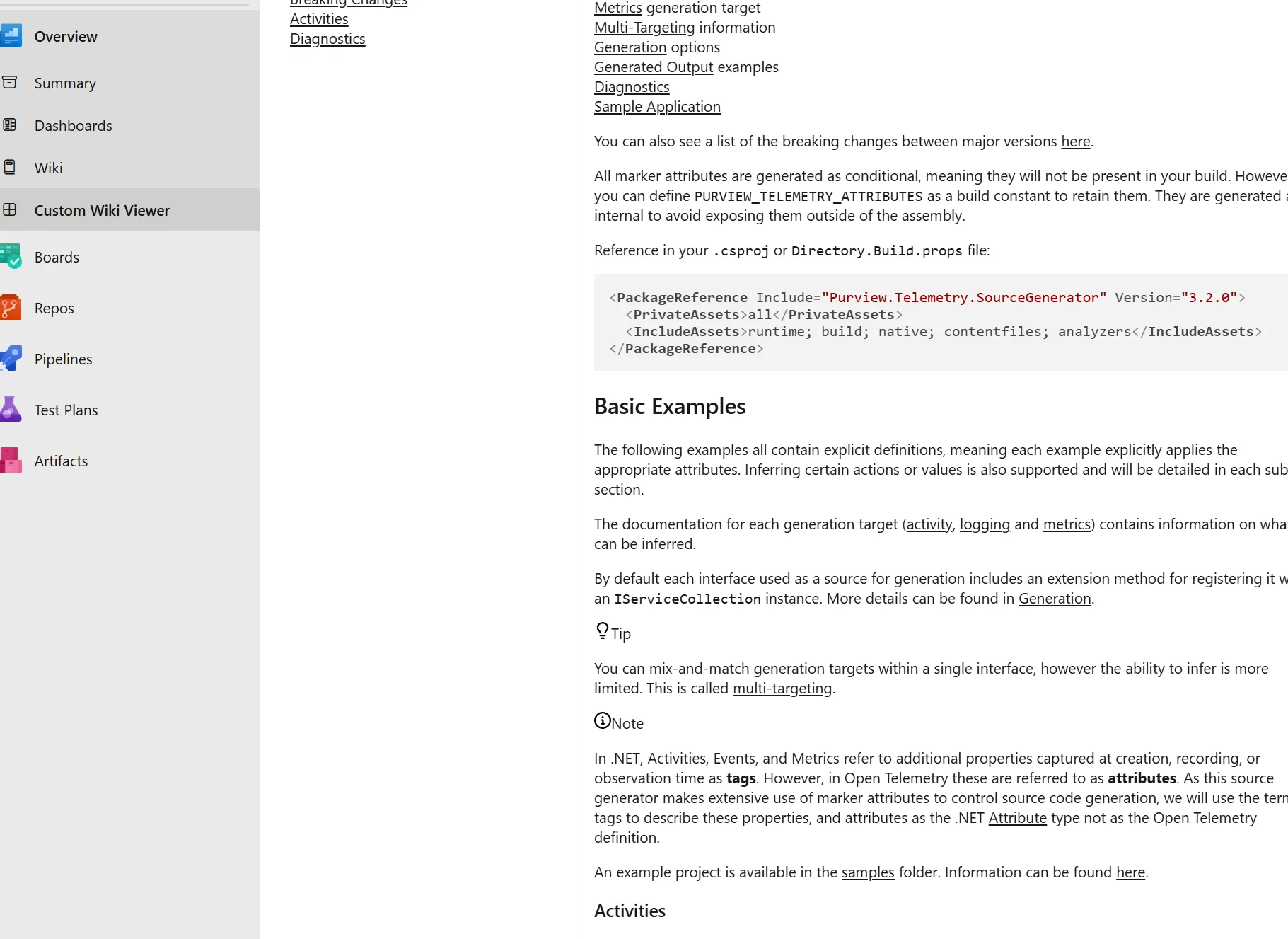

Here’s the current state of the extension:

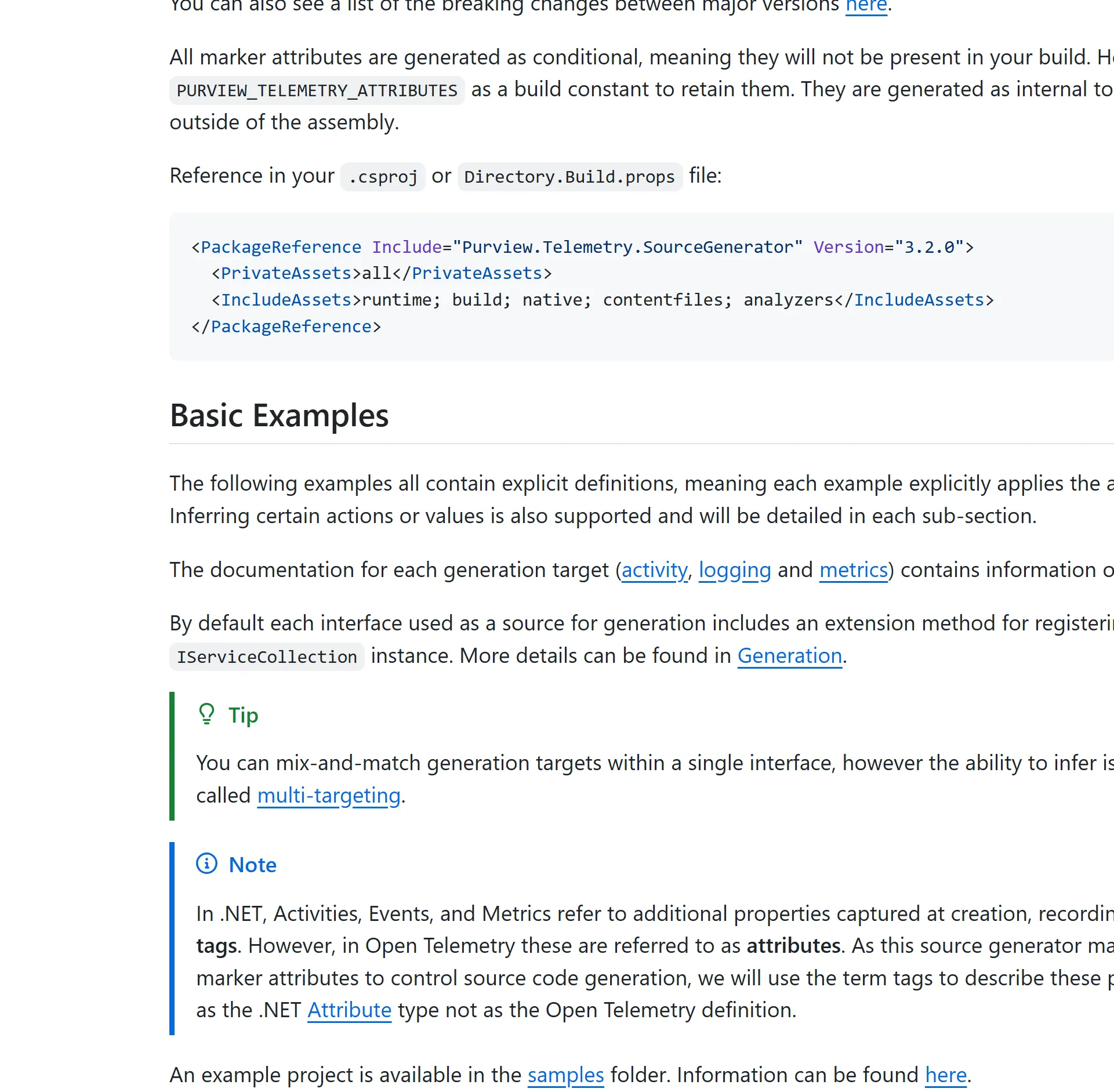

… and here is the original GitHub Wiki version of the same page:

---

As you can see… it’s not quite there yet, but solid progress so far!

---

2025-05-01 … Packing up shop… for now

I’ve been working on this for a few days now, and while I have a working prototype, I think it’s time to take a break - while good progress was made, I realised that there is much more to do than just fix the rendering.

Missing Functionality

It would need to be able to handle the following:

• Support for the existing Azure DevOps wiki features
  • Editing, or links back to the editor
  • Commenting…like the existing one.
  • Viewer numbers/ favourites/ etc
  • The tree view on the left is just some nested UL right now… no interactivity.
  • Extensive amount of ADO-based extensions for:
    • Board query rendering
    • Work-item rendering
    • etc… there are a lot of them!

Attachment (re: images) rendering

Rendering attachments (images, etc) isn’t ideal. The links come down as relative links…which 403.

Looking at the working Wiki, the url used includes a bunch of additional parameters that are not included in the Azure DevOps wiki API… that I can see at least.

Mermaid rendering

The mermaid rendering is slow. Really slow… and that’s on my machine which is a beast. Like the default Wiki, it would need to be lazy loaded - I’m not a React expert, so I’ll have to come back to this!

Callouts/ Admonitions

I’d love to see proper support for the callouts/ admonitions (like the GFM-alerts).

Some nice examples are:

• MyST
• Obsidian

Both support a wide range of styling options, including titles, icons, and collapsible sections.

Parsing/ Styling/ Rendering

It seems like I’m fighting the parsing/ styling at every turn. Nested UL/OLs are not correctly parsed (they surface as div?!) and so they look shocking.

The mermaid container is tiny… I didn’t spend much time of this, but still more effort required.

Where I’m leaving it (for now)

2025-05-04 … OK, I’m really leaving it for now!

I managed to add a few really nice features like the lazy loading of the mermaid diagrams, and some more processing options for the admonitions.

But also integrated better syntax highlighting through the use of the excellent Expressive Code - the rendering is perfect.

Unrelated to the rendering of the wiki was the most useful feature to date… importing it into Microsoft Copilot for some AI magic so our developers, and engineers can ask questions and get real, update to date, relevant answers.
